Description:
- Tilted paper feeding table is more suitable for the conveyingand positioning of high-speed thin paper;
- The front lay 4 pints positioning can be individually adjusted atfour points to adapt to accurate positioning under differentpaper conditions;
- With advanced technology, the positioning of a single tooth rowcan be fine tuned before and after compensation to meet therequirements of product processing accuracy;
- The latest technology multi plate parallel cam intermittent drivemechanism (imported splitter and imported torque clutchare adopted).
Parameter:

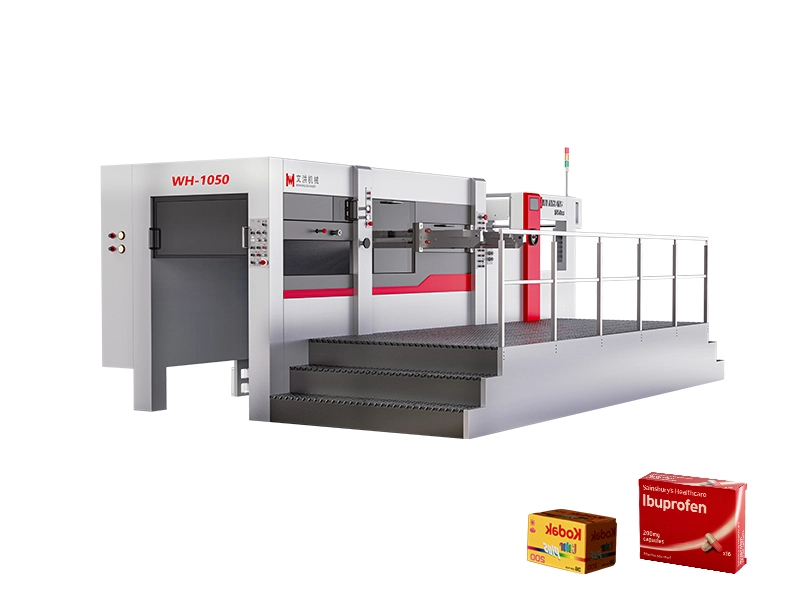

| odel No. | WH-1050
S(Without Waste Removal) |
WH-1050SS
(With Waste Removal) |
WH-1050SSR Die Cutting Embossing
(With Waste Removal) |
|---|---|---|---|
| Max.Sheet Size | 1050x750mm | 1050x750mm | 1050x750mm |
| Min.Sheet Size | 400x360mm | 400x360mm | 400x360mm |
| Max.Cutting Size | 1040x720mm | 1040x720mm | 1040x720mm |
| Maximum cutting pressure | 400Ton | 400Ton | 600Ton |
| Feeding materials | 80-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 80-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 80-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm |
| Min.gripping margin | 9.5mm | 9.5mm | 9.5mm |
| Maximum mechanical speed | 8000 Sheets/hr | 8000 Sheets/hr | 8000 Sheets/hr |
| Required air supply | Air compressor discharge 0.36m³/Min-provided by the user | Air compressor discharge 0.36m³/Min-provided by the user | Air compressor discharge 0.36m³/Min-provided by the user |
| Power required | 20.0kw | 20.0kw | 45.0kw |
| Machine weight | 16 Ton | 17 Ton | 20 Ton |
| Machine dimension | L6.42W4.21H2.42m | L7.38W4.21H2.42m | L7.38W4.21H2.42m |
Features:
High Precision: Equipped with advanced die-cutting technology to ensure every cut is accurate and flawless.
High Efficiency: Fast operating speed, ideal for mass production.
Strong Stability: Robust structure, suitable for long hours of continuous operation.
Intelligent Operation: User-friendly control panel for simple and easy operation.
Versatility: Supports die-cutting of various materials, including corrugated cardboard, card stock, and plastic film.
Applicable Industries:
Packaging manufacturing (cartons, paper boxes)
Post-press processing
Advertising industry
After-Sales Service:
Installation and commissioning support
One-year warranty with lifetime maintenance
24/7 technical support
